Bezzera Water Wand Service Kit

$43

The basic kit for servicing a leaking water wand for most Bezzera espresso machines

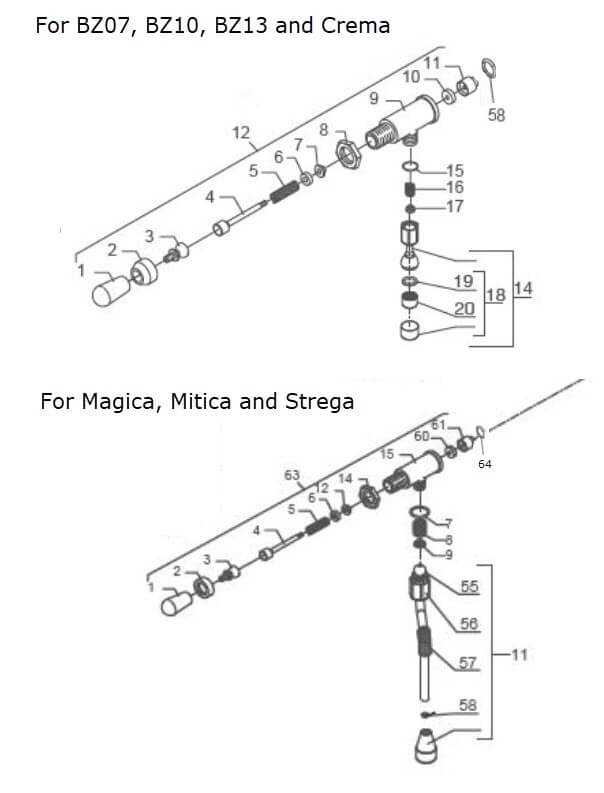

This is mainly for addressing stiff joints or leaks around the nut pictured part 55 on the left for Magica, Mitica and Strega. It’s the same nut for BZ07, BZ09, BZ10, BZ13 and Crema

For other leaks around the wand, you may want to refer to: Bezzera Leaking Wand

    There are a few versions for this, we will suggest that you unscrew the nut and check if part 15 is using a black or white gasket. You may want to reuse the spring if it's too tight.

    There are a few versions for this, we will suggest that you unscrew the nut and check if part 7 is using a black or white gasket. You may want to reuse the spring if it's too tight.

    This is for servicing wands that can't stop leaking steam from the tip. Before you consider changing these gaskets, it could be part 2 is too tight and that releases the steam, loosen part 2 may help. It is also normal that the wands release residual steam gradually, or have water drips from condensation.

    Replacement of these gaskets will be a little more challenging, users will have to be technically capable enough to perform the task. There are no further instructions.

    • 9 $

    You will need to lubricate all contacts with grease and this is the correct one used originally in the factory.

    • 18 $

    This is for servicing wands that can't stop leaking steam. Before you consider changing these gaskets, it could be part 2 is too tight and that releases the steam, loosen part 2 may help. It is also normal that the wands release residual steam gradually, or have water drips from condensation.

    Replacement of these gaskets will be a little more challenging, users will have to be technically capable enough to perform the task. There are no further instructions.

    • 9 $

    You will need to lubricate all contacts with grease and this is the correct one used originally in the factory.

    • 18 $

Delivered in 2-3 working days

This should work for most Bezzera machines, please pay attention and purchase the right kit for the right model. This kit is for machines manufactured from 29.01.14.
If the top or bottom of wand’s holding nut leaks when you switch on the water wand, then this kit will be needed.

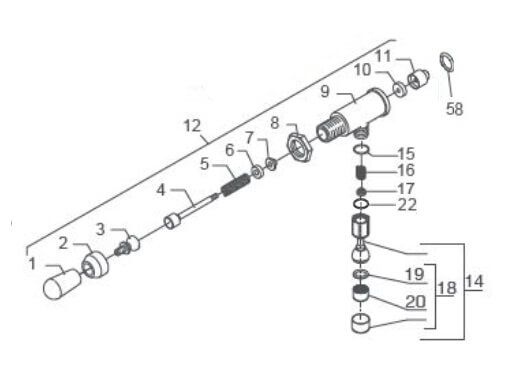

For BZ07 BZ10, BZ13 and Crema

Bezzera water wand kit bz range

























Contains the following

15: 7496072 OR GASKET 121
16: 5471532 SPRING
17: 5190501 COMPLETE CUP
22: 7496073.01 GASKET OR 115 EP856 (Replaced 5494017 OR GASKET 115 EP856)
19: 5493003 GASKET
58: 7496084 GASKET (Connecting part 18)

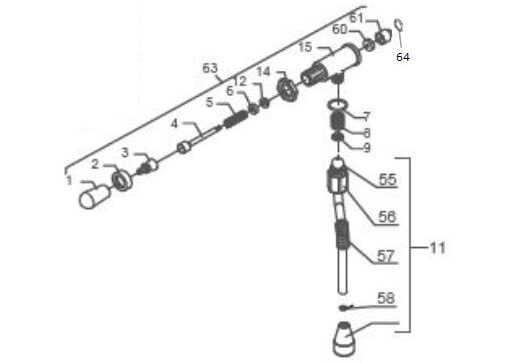

For Magica, Mitica and Strega

Bezzera water wand kit E61 range

























Contains the following.

7: 7496072 OR GASKET 121
8: 5471532 SPRING
9: 5190501 COMPLETE CUP
55: 7496073.01 GASKET OR 115 EP856 (Replaced 5494017 OR GASKET 115 EP856)
58: 7496084 GASKET
5493003 GASKET

Food grade grease may be required but should be applied sparingly.

You will need a 22mm wrench which is not provided. For BZ13 or Crema, you will need a crowfoot wrench.

Youtube instructions from Whole Latte Love

IMPORTANT INFORMATION:

Servicing should be done when the machine is cooled down and not pressurised. The wand should be placed in off position.

Do not overtighten. If leaks persist, you can apply a layer of plumber tape which can withstand high heat on the bottom threads of part 9.





We do not have further instructions.

No guarantee or warranty is given and servicing should be done by a qualified technician.

Kits sold are NOT refundable or returnable.
